11KG 0.95RH Leak Test Apparatus For Electric Toothbrush 20kPa

Name: 11KG 095RH Leak Test Apparatus For Electric Toothbrush 20kPa
Brand: Seals-ins
Price: 1 USD

Brand Name : Seals-ins

Model Number : YLA-M-XXXX-D

Place of Origin : Guangdong, China

Price : $1,000.00 - $10,000.00/Pieces

Packaging Details : Cartons, wooden boxes, pallets

Pressures Measurement Accuracy : +-0.05%FS

Power : AC220V

Net weight : 11KG

Medium : Air

Warranty : 18 months

Dimension : 305mm*335mm*285mm

Environmental temperature : 0-50℃

MOQ : 1set

Port : shenzhen

Contact Now

Leak Test Apparatus for Electric Toothbrush

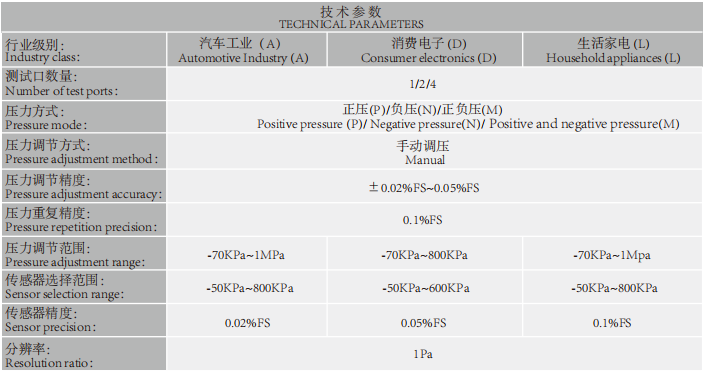

Product Paramenters

Item	Testing Machine
Test medium	Compressed air or specified medium by customers
Gas source	0.4-0.8MPA (clean, dry)
Power supply	AC220V(±15%),50HZ,ground lead
Environmental temperature	0-50℃
Environmental humidity	≤95% (not dew)
Pressure adjustment range	-20kPa~150kPa
Number of test ports	1
Status of the tested product	With or without hole, semi finished or finished product
Pressure mode	Positive and negative pressure
Pressure adjustment precision	0.05%F.S
Measurement range of the senor	-20kPa~150kPa
Measurement range precision of the senor	0.02%FS
Pressure minimum setting unit	1Pa
Resolution ratio	1Pa
Dimension	335305285
Gross weight	11KG

The SLA direct pressure leak detector is mainly used for test of the semi-automatic or fully automatic leak with the dry compressed air as a medium, inflating the tested parts with the possitive pressure(or negative pressure), and determines whether the filled gas has leak. When verifying, the compressed air source is cutting off, if the air within the tested products leaks, the test pressure will inevitably change. What we need to test is this variation in pressure. By calculation of the

pressure change of the tested object, we achieve the good or bad judgment of the tested products on the production line.

Advantage analysis:

SLA full series of products, has high precision, and sensor precision development to 0.02-0.05%FS, with the international mainstream brand standard, is in the domestic leading level (The test report issued by the national measurement Institutes institute shall prevail.)
Pressure regulation needs to eliminate manual double-fold air pipe, also needs to prevent hand heating, resulting in pressure source pressure differences accumulated and offset.
Pressure output pipe interface adopts metal quick plug structure, is stable and durable, easy to disassemble and assemble. (we have patent of invention)
Equipped with bar code scanning function, quality issue tracing is convenient. (Some non-standard instruments do not have this function)
Automatic compensation and correction of temperature and humidity to prevent the interference of external conditions. (we have software copyright)
Six language support, to adapt to different customer groups.
